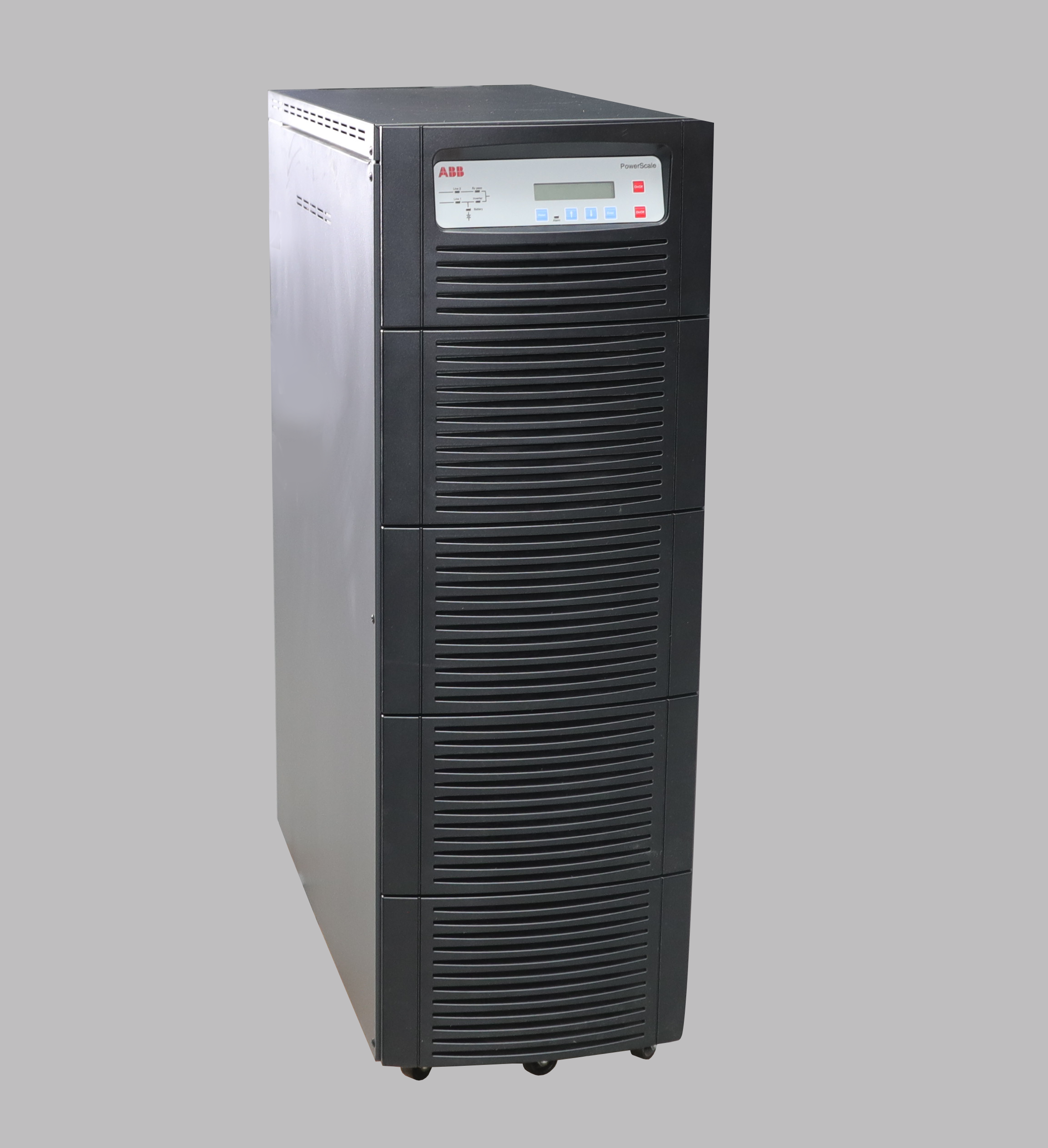

The broad range of PowerScale has been designed to offer the most important benefits to our customers and fulfil todays most demanding requirements in terms of:

• System availability
• Environmental impact
• Total cost of ownership
• Solution flexibility

These specific measures are confirmed by PowerScale industry-leading technical characteristics such as:

• Output power factor: 0.9
• High input voltage tolerance(100 % load: -23 % / +15 %; 60 % load: -40 % / +15 %)
• High input frequency tolerance(35-70 Hz)
• AC-AC efficiency up to 95.5 %
• Ripple-free battery charging

The PowerScale range operates in the largest three-phase UPS market. Consequently it is even more important that PowerScale offers best-in-class, environmentally friendly features such as:

• High efficiency for energy saving
• Small size for space saving
• Flexible battery block per string for minimal environmental impact
• Sustainable material for proper recycling
• Efficient manufacturing

Flexible battery configuration - In each cabinet, the space available for internal batteries is designed to fulfil most of the run-time requirements. The smaller units (10 to 25 kVA) are available in two cabinet sizes, and the larger units (30 to 50 kVA) can house different battery sizes (7 / 9 Ah or 28 Ah). If extended autonomy is required, the complementary battery cabinet of the PowerScale range can easily be connected to any unit.

Enhanced communication capabilities - PowerScale is equipped with a variety of standard and optional communications features for network connectivity and application management.

Standard features

• RS 232 on Sub-D9 port
• 4 input contacts
• 12 VDC source
• RJ 45 for multidrop

Optional features

• SNMP card (slot)
• Card including 5 potential free output contacts and USB port

For more technical information download below files:
